PCB assembly prototyping solutions

Complete solutions for electronics prototyping. Entry-level manual, semi-automatic and automatic machines for solder paste printing, electronic components mounting, and solder paste reflow.

Find out more
Small series electronics production

Complete solutions for small production of electronic products. Stand-alone machines for mounting electronic components on boards and small production lines for SMD mounting automation.

Find out more
Serial production of electronics

Complete solutions for serial production of PCB assembly. Fully automated production lines for surface mounting and through hole assembly. Automatic inspection at different stages of production.

Find out more

SMT, THT, COATING, INSPECTIONS

Complete solutions for electronics manufacturing
Automation of PCBA processes

SMT

Complete solutions for SMT. Production lines for SMT of PCB assembly production. Entry-level machines for small production and mass production lines.

THT

Complete solutions for through hole electronics components mounting. Full automation of component placing into PCB holes. Selective and wave soldering.

Conformal coating

Complete solutions for conformal coatings on boards. Automatic stand-alone machines. Automated lines with materials curing and automatic inspection.

Inspection

Complete solutions for optimizing optical inspection of the quality of component mounting on boards. Stand-alone AOI line to work with multiple assembly lines.

High-End SMT machines

Complete solutions for surface mounting
SMT line

Solder paste printer

G-Titan

Solder paste inspection and stencil apertures inspection in standard configuration.

SMD mounter

RS-1R

Placement Rate: 42 000 CPH. Component Size: till 74mm / 50×150mm. Board Size: 1200x370mm

Reflow oven

RS100

Very good thermal properties on the board. Fast warm-up time and low energy consumption.

Obtaining further information by make a contact with our experienced staffs.

We’re available for 8 hours a day!

Solutions for Surface Mount Technology.

Low cost solutions for SMT
Minimum investment.

SMD assembly line for small-scale production includes three main technological processes: solder paste printing, mounting of electronic components on a printed circuit board, reflowing solder paste in an reflow oven. Solder paste printed on a simple stencil printer with manual movement of the squeegees. For products with a high mounting density, semi-automatic solder paste printing are recommended. Electronic components mounted automatically on an entry-level SMD placer. Reflow solder in an entry-level or mid-range conveyor reflow oven. All machines of the SMD assembly line has a stand-alone off line design.

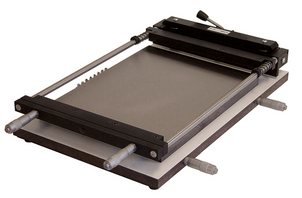

Solder paste printer

SD300

Solder paste printer with fixation of stencil without frame. The most popular model. The device is equipped with supports for double-sided solder paste printing and a squeegee. Suitable for small batch production of PCB assembly.

SMD manipulator

LM900

Equipment for manual placement of electronic components (SMD) on the surface of printed circuit boards using surface mount technology (SMT). Works with various types of feeders: for tape, for a tube, for a pallet, from a bulk.

Reflow oven

HA06

A low-cost soldering oven for prototyping small circuit boards. The reflow oven is compatible with the technology of mounting components on lead-free solder pastes. The ability to connect a thermocouple and exhaust ventilation.

High End machines

Minimal risks in the delivery of equipment. Machines from leading manufacturers of PCB assembly equipment.

Complete solution

Optimized integrated manufacturing solutions for customer requirements. Organization of production processes.

Installation and training

Machines installation at the production facilities of the Customer. Process development. Technical training.

Technical support

Technical and technological support by phone and email. Technical support at the customer's production
